Data Toolkits

To facilitate future research, we leverage two popular large-scale autonomous driving datasets, nuScenes and Waymo, which you need to download and organize first as step 1 in Instructions. And then you can apply our toolkits in GitHub to generate noisy datasets:

nuScenes-R  python tools/create_noise_data_nuscenes.py nuscenes --root-path ./data/nuscenes --out-dir ./data/nuscenes --extra-tag nuscenes
noisy pkl: dict(
        'lidar': dict(...) # noisy infos of lidar
        'camera': dict(...) # noisy infos of camera
)
lidar: dict(
    'xxxx.bin': dict(...),
    'xxxx.bin': dict(...)
)
dict(
    'prev': 'xxxx.bin' or '' ,
    'cam': dict('CAM_FRONT':'xxx.jpg', 'CAM_FRONT_RIGHT':'xxx.jpg', ...),
    'mmdet': dict(),
    'noise': dict(
    	'drop_frames': dict(
        	'10': dict('discrete': dict('stuck': True or False, 'replace': 'xxx.bin',
                       'consecutive': dict('stuck': True or False, 'replace': 'xxx.bin',
                  )
            '20':
            ...
            '90':
        ),
    'object_failure': True/False
    )
)
camera: dict(
	'xxxx.jpg': dict(...),
    'xxxx.jpg': dict(...)
)
dict(
    'type': 'CAM_FRONT' or 'CAM_FRONT_RIGHT' or ... ,
	'prev': 'xxxx.jpg' or '' ,
    'lidar': dict('file_name': 'xxx.bin') ,
    'noise': dict(
    	'drop_frames': dict(
        	'10': dict('discrete': dict('stuck': True or False, 'replace': 'xxx.jpg'
                       'consecutive': dict('stuck': True or False, 'replace': 'xxx.jpg'
                  )
            '20':
            ...
            '90':
        )
        'extrinsics_noise': dict(
            'sensor2ego_translation': xxx,
        	'single_noise_sensor2ego_translation': xxx,
            'all_noise_sensor2ego_translation': xxx,
            ...
        ),
        'mask_noise': dict(
            'mask_id': xxx,
        )
    )
)
Waymo-R  python tools/create_noise_data_waymo.py waymo --root-path  data/waymo --out-dir data/waymo --workers 128 --extra-tag waymo
noisy pkl: Similar to the nuScenes-R

Data Instructions

When you download the noisy val pkl files in Download or generate it using our toolkit above. You can evaluate your LiDAR-camera fusion methods on our benchmark as the detailed instructions in GitHub. For example, using noise of lidar object failure:
LiDAR Object Failure:
class Randomdropforeground(object):
    def __init__(self, noise_nuscenes_ann_file=''):
        noise_data = mmcv.load(noise_nuscenes_ann_file, file_format='pkl')
        self.noise_lidar_data = noise_data['lidar']

    @staticmethod
    def remove_points_in_boxes(points, boxes):
        masks = box_np_ops.points_in_rbbox(points.coord.numpy(), boxes)
        points = points[np.logical_not(masks.any(-1))]
        return points

    def __call__(self, input_dict):
        gt_bboxes_3d = input_dict['gt_bboxes_3d']
        gt_labels_3d = input_dict['gt_labels_3d']
        pts_filename = input_dict['pts_filename']
        noise_index = pts_filename.split('/')[-1]

        points = input_dict['points']
        if self.noise_lidar_data[noise_index]['noise']['object_failure']:
            points = self.remove_points_in_boxes(points, gt_bboxes_3d.tensor.numpy())
        input_dict['points'] = points

        return input_dict

    def __repr__(self):
        repr_str = self.__class__.__name__
        repr_str += ' fore_drop_rate={})'.format(self.drop_rate)
        return repr_str

Data Examples

We show the collected real-world noisy data cases of autonomous driving as follows:

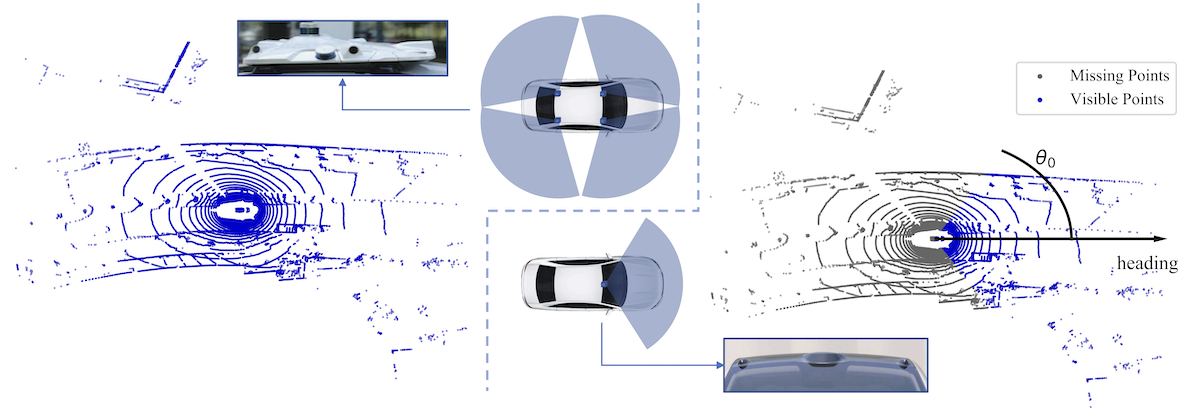

Limited LiDAR field-of-view (FOV).

LiDAR object failure.

Camera lens occlusion.

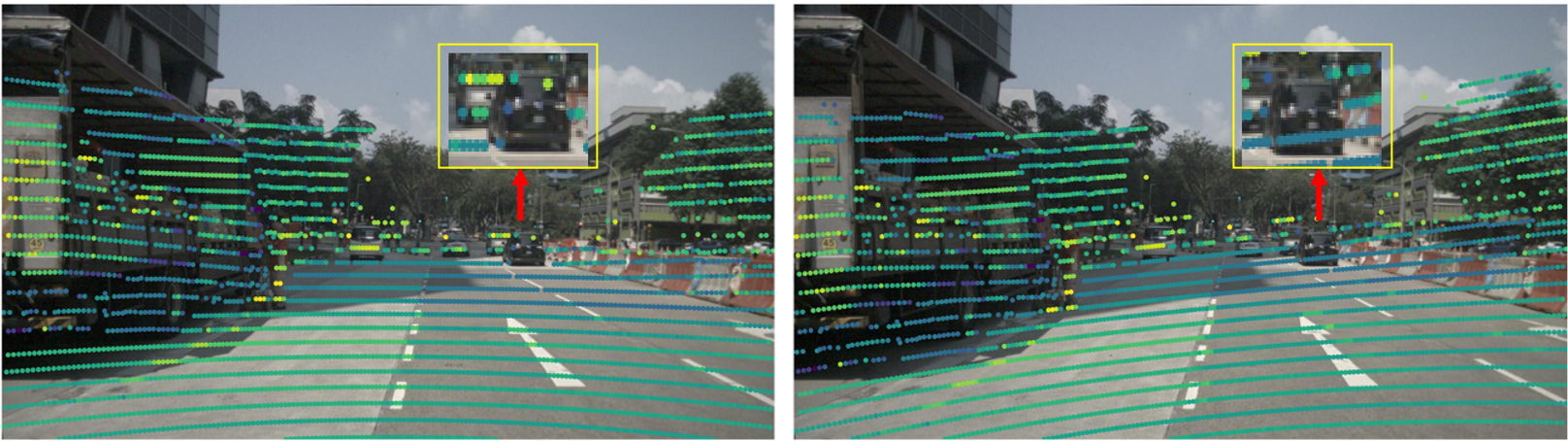

Spatial misalignment.

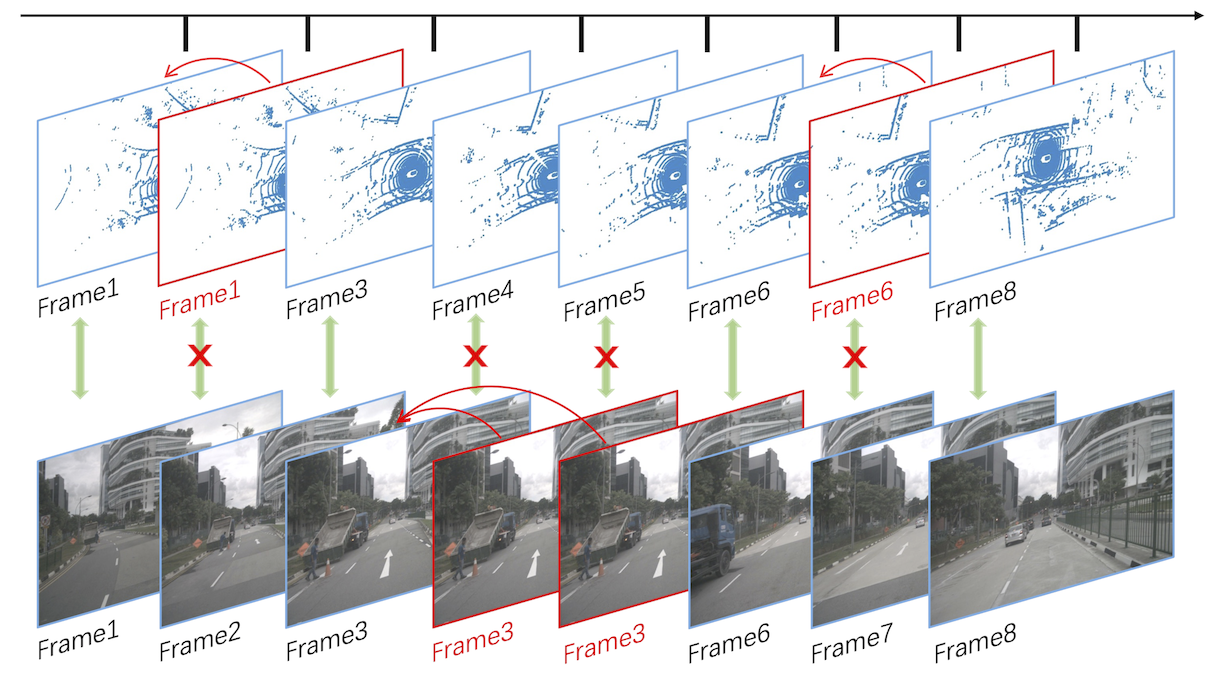

Temporal misalignment.
